Plates. By satellite, then by time.
Every frame this rig has filed, grouped by which bird it came from. Each section is fed by one configured chain; clicking the section header takes you to that instrument's page. Failed captures and unlocked passes are kept in the operational log, not here.
-

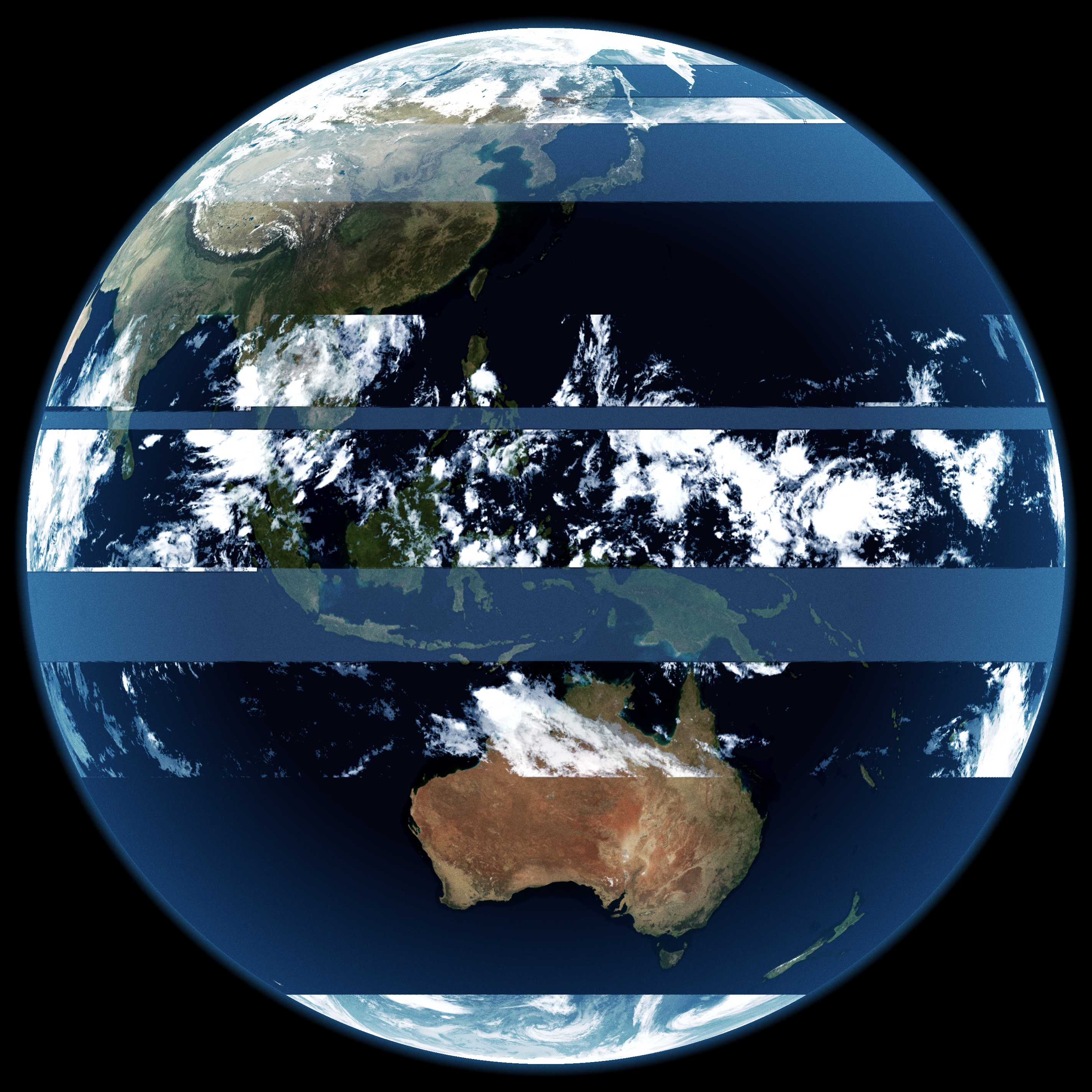

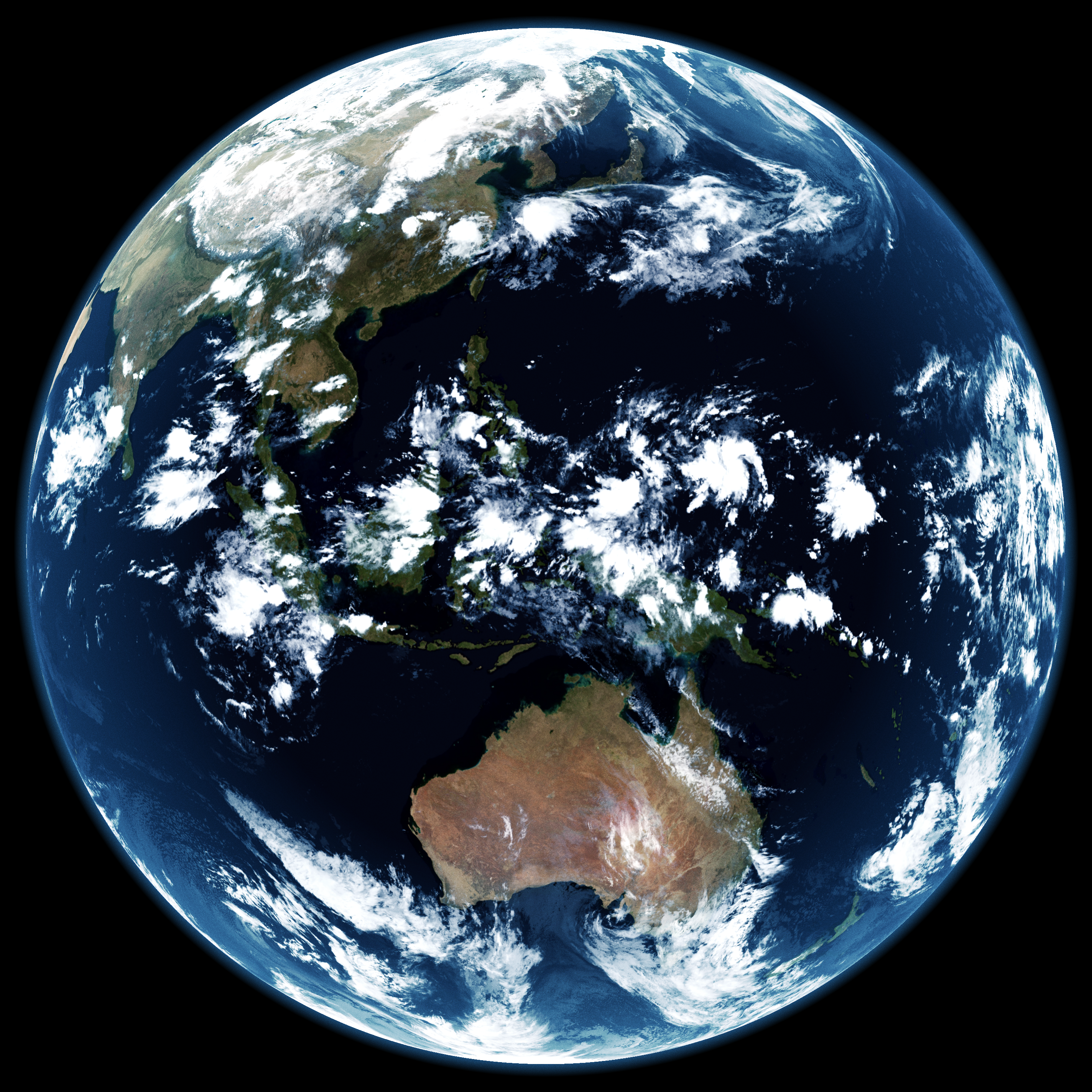

Lossless WebP shown · click for original PNG Full PNG ↗ Plate I No. 01 Full disk · IR 105 channel
Early morning IST. Sun terminator falls across the Pacific; dawn over Japan.
- Satellite
- GEO-KOMPSAT-2A
- Channel
- IR105 (10.3 μm)
- Captured
- 2026-05-19 · 02:10Z
- Frequency
- 1692.140 MHz (L-band)
- SNR
- 12.7 dB
- CADU
- 4772 KiB
- Pipeline
- SatDump v2.0.0-alpha · Sanchez v1.0.26.1
-

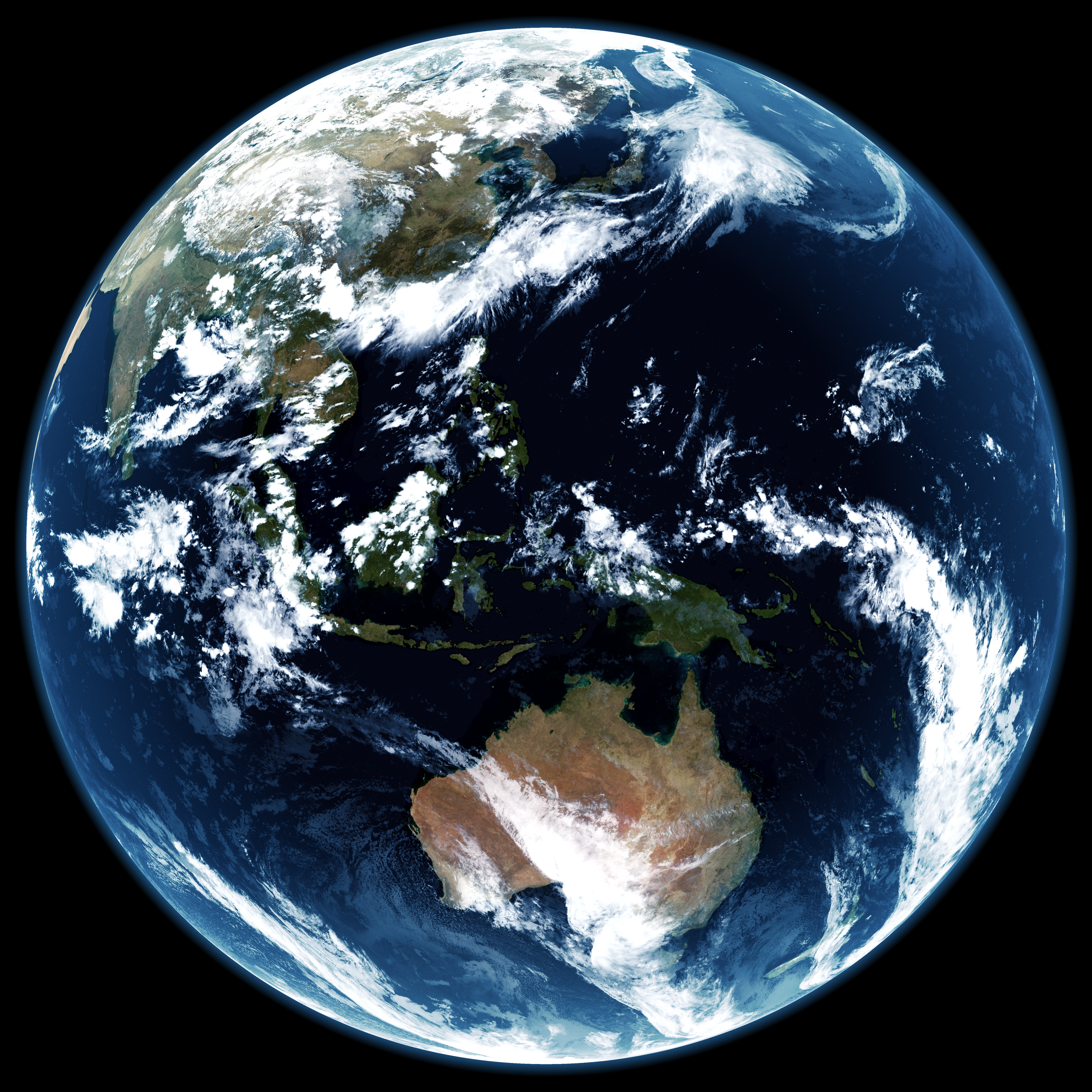

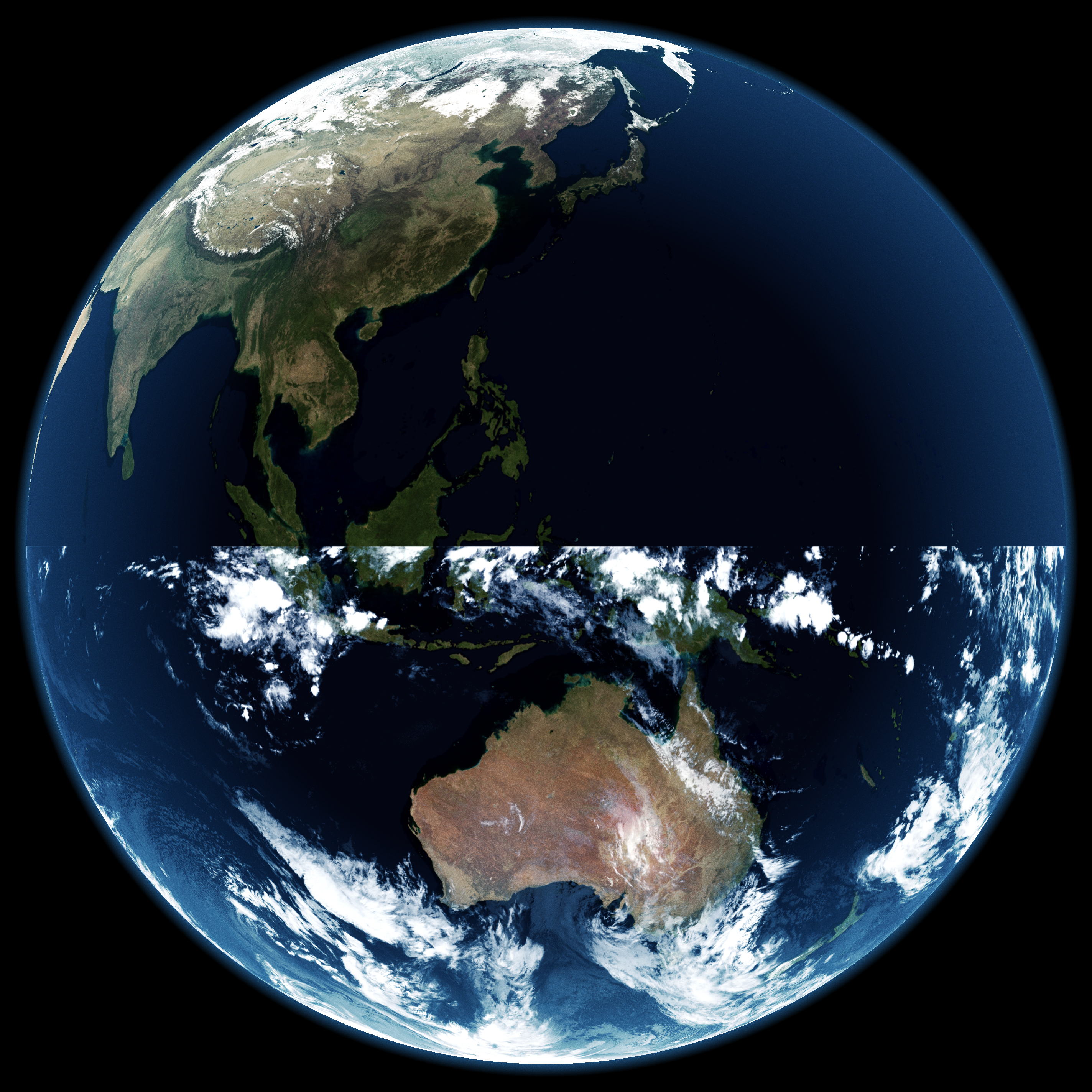

Lossless WebP shown · click for original PNG Full PNG ↗ Plate II No. 02 Full disk · IR 105 channel
South Pacific clear; eastern Australia under cloud. The CADU stream held lock for the full slot.
- Satellite
- GEO-KOMPSAT-2A
- Channel
- IR105 (10.3 μm)
- Captured
- 2026-05-19 · 01:30Z
- Frequency
- 1692.140 MHz (L-band)
- SNR
- 12.1 dB
- CADU
- 4651 KiB
- Pipeline
- SatDump v2.0.0-alpha · Sanchez v1.0.26.1
-

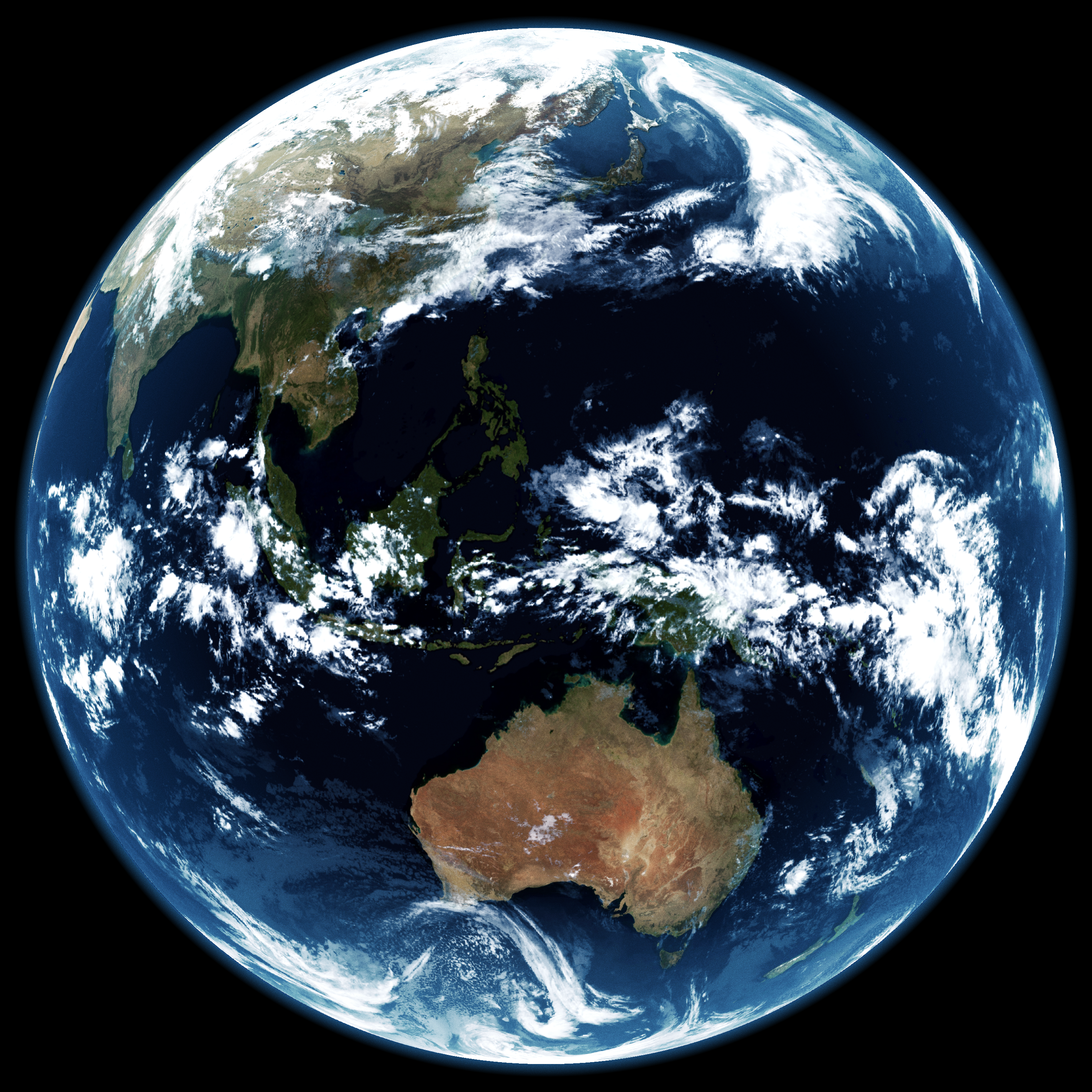

Lossless WebP shown · click for original PNG Full PNG ↗ Plate III No. 03 Full disk · IR 105 channel
Ten minutes later. The cyclone has rotated visibly; the eye is sharper.
- Satellite
- GEO-KOMPSAT-2A
- Channel
- IR105 (10.3 μm)
- Captured
- 2026-05-18 · 13:30Z
- Frequency
- 1692.140 MHz (L-band)
- SNR
- 12.5 dB
- CADU
- 4718 KiB
- Pipeline
- SatDump v2.0.0-alpha · Sanchez v1.0.26.1
-

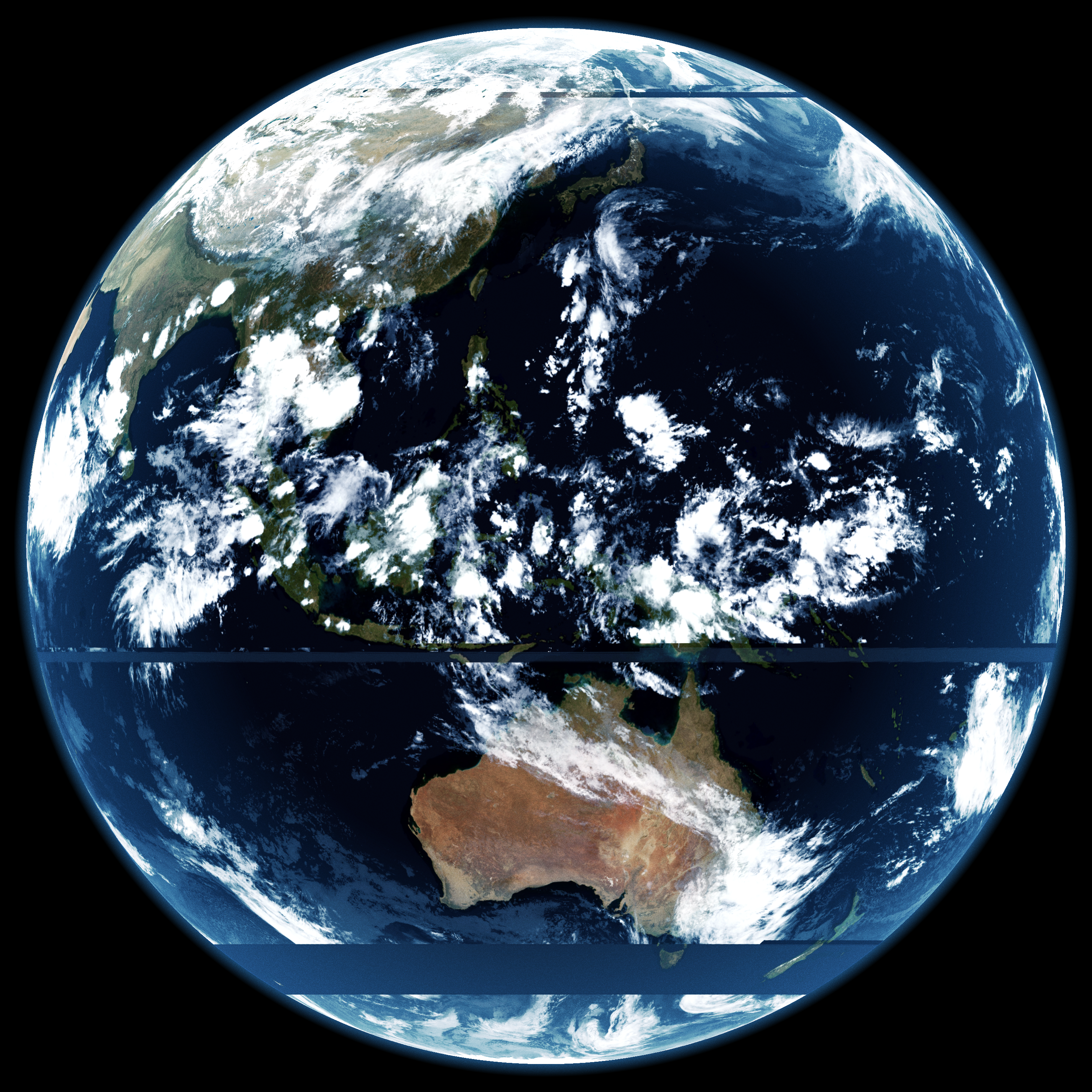

Lossless WebP shown · click for original PNG Full PNG ↗ Plate IV No. 04 Full disk · IR 105 channel
The cyclone over the Bay of Bengal is the kind of feature this whole stack exists for.
- Satellite
- GEO-KOMPSAT-2A
- Channel
- IR105 (10.3 μm)
- Captured
- 2026-05-18 · 13:20Z
- Frequency
- 1692.140 MHz (L-band)
- SNR
- 12.4 dB
- CADU
- 4714 KiB
- Pipeline
- SatDump v2.0.0-alpha · Sanchez v1.0.26.1 (blue underlay, haze 0.6)
-

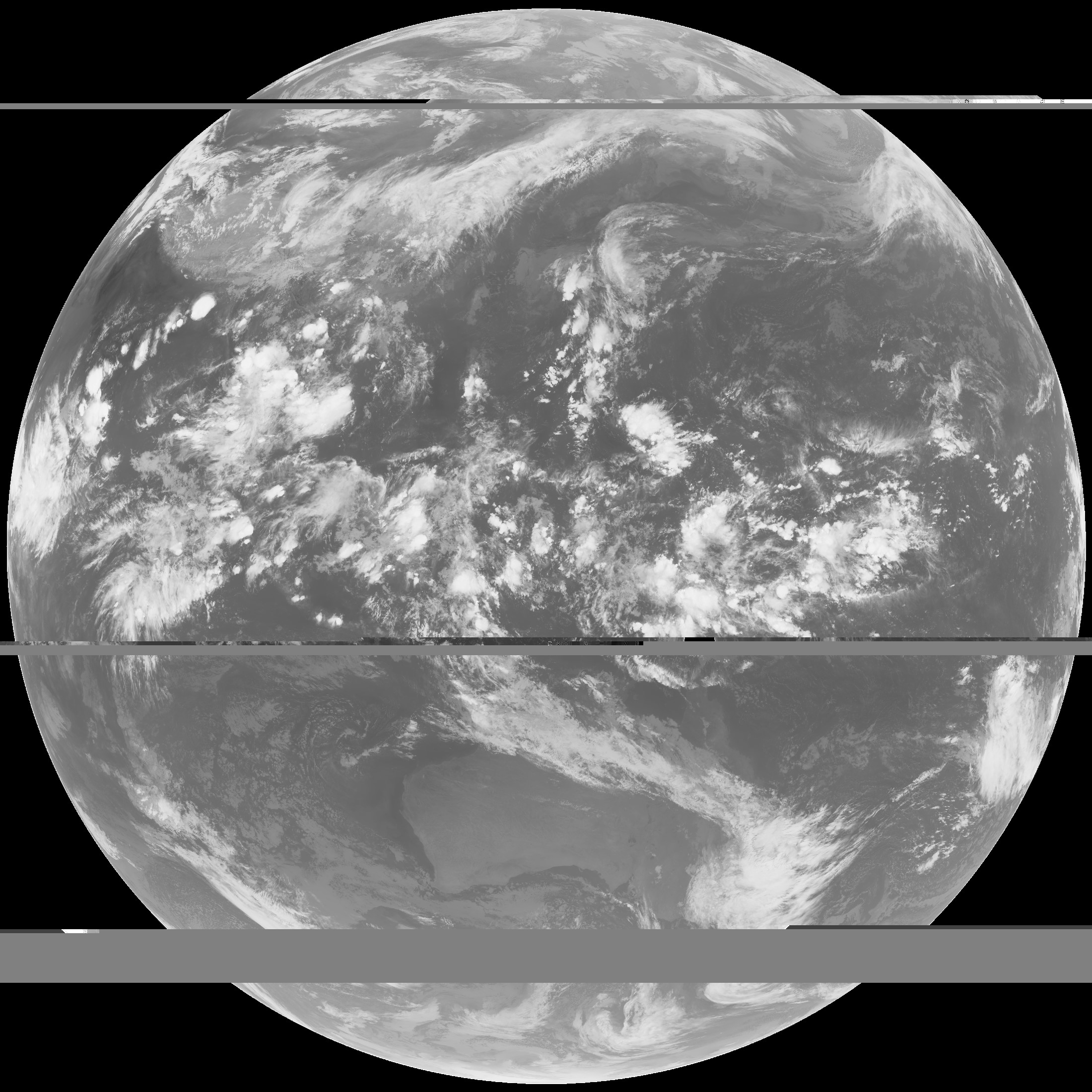

Lossless WebP shown · click for original PNG Full PNG ↗ Plate V No. 05 Full disk · IR 105 channel · uncolorised
The same capture as Plate I, before Sanchez. Greyscale IR brightness, no underlay, no projection compensation. This is what SatDump emits.
- Satellite
- GEO-KOMPSAT-2A
- Channel
- IR105 (10.3 μm)
- Captured
- 2026-05-18 · 13:20Z
- Frequency
- 1692.140 MHz (L-band)
- SNR
- 12.4 dB
- CADU
- 4714 KiB
- Pipeline
- SatDump v2.0.0-alpha (no post)
-

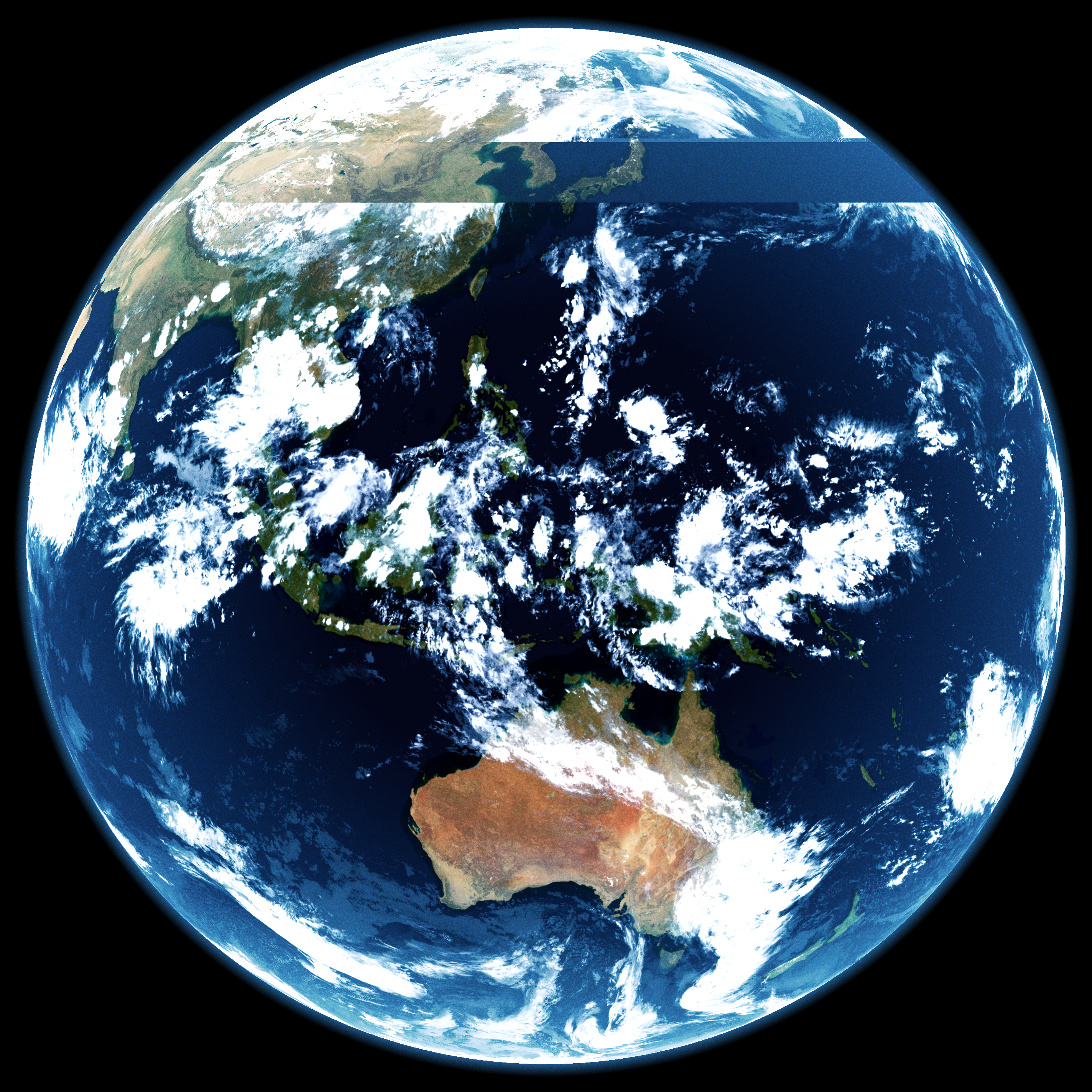

Lossless WebP shown · click for original PNG Full PNG ↗ Plate VI No. 06 Full disk · IR 105 · red-blue palette
Same instrument, different colour ramp. Red-blue brightness mapping makes the cold high-altitude cloud tops legible without the photographic underlay.
- Satellite
- GEO-KOMPSAT-2A
- Channel
- IR105 (10.3 μm)
- Captured
- 2026-05-18 · 12:10Z
- Frequency
- 1692.140 MHz (L-band)
- SNR
- 12.0 dB
- CADU
- 4689 KiB
- Pipeline
- SatDump v2.0.0-alpha · Sanchez (red-blue gradient)
No images yet
Elektro-L5 is in commissioning at 76°E. Broadcasts are sporadic, clustered around 08:00 UTC, and the first-light attempt on 2026-05-17 yielded no decoded frames. Images appear here once the bird is reliably transmitting and the chain locks.
-

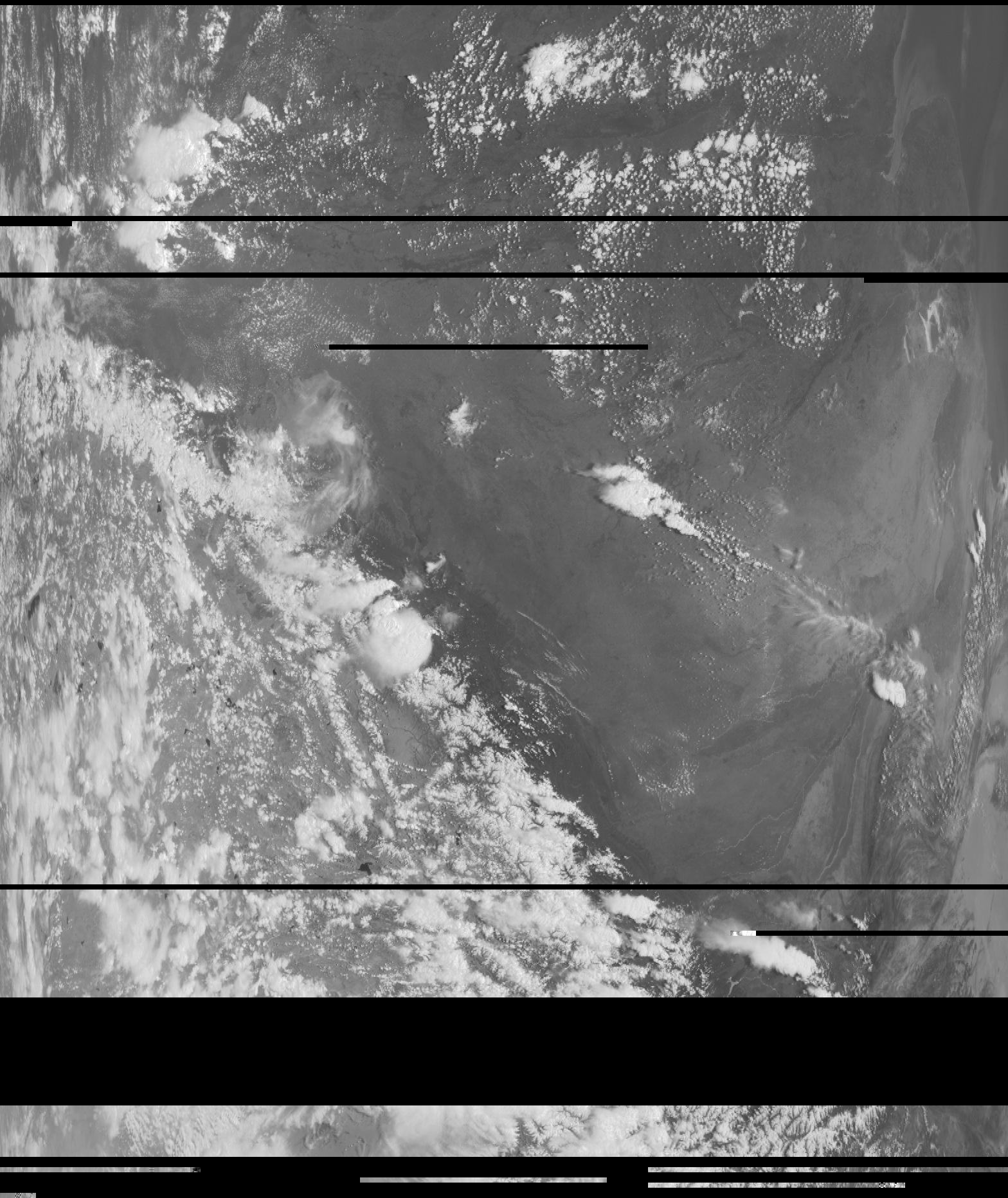

Lossless WebP shown · click for original PNG Full PNG ↗ Plate I No. 01 MSU-MR · channel 1 · visible
A polar pass on the V-dipole, before the rig was retired for the L-band rebuild. LRPT, decoded with --dc_block=true after the original attempt yielded a twelfth of the CADU.
- Satellite
- METEOR-M N2-4
- Channel
- MSU-MR ch.1 (0.5–0.7 μm)
- Captured
- 2026-05-12 · 09:05Z
- AOS / LOS
- 09:02Z → 09:12Z (637s)
- Frequency
- 137.900 MHz (VHF-band)
- SNR
- 7.5 dB
- CADU
- 2176 KiB
- Pipeline
- SatDump v2.0.0-alpha (--dc_block=true)
